Axwood Passthrough Dishwasher 3 phase - PTD-601D

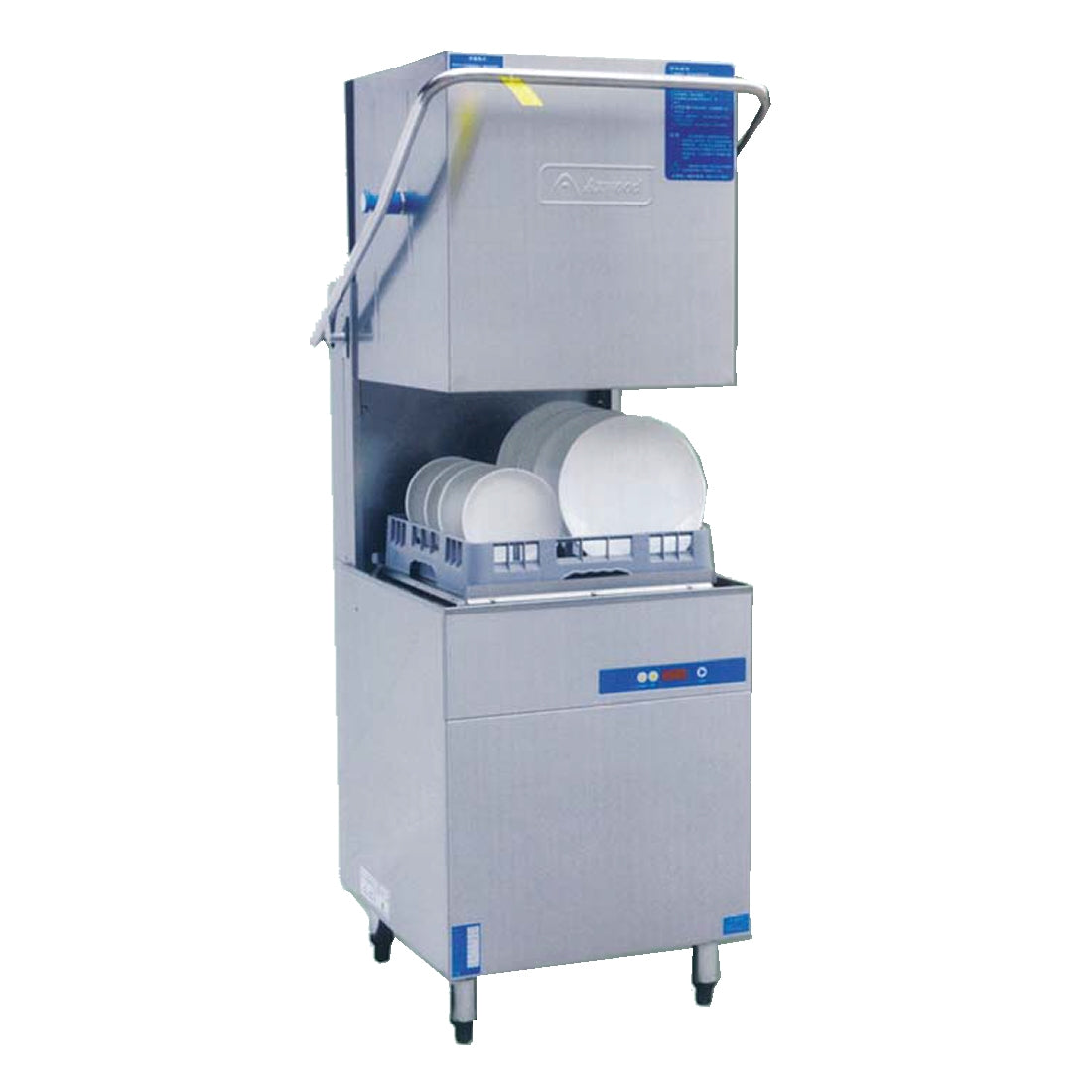

Axwood Pass-Through Dishwasher - Hood Type Dishwasher - PTD-601D

• Easy to use: Easy installation and service
• User- friendly one-touch system
• High Performance: Powerful wash pump delivers higher volumes of wash water and ensures faster clean up times.
• Low running costs: Hi-tech computer controller ensures low water, low energy, and less detergent consumption.
• Quality: Full stainless steel structure with stainless steel wash & rinse arms.
• Incoming water temperature 10-60°C
• Rated currently of air circuit breaker 40A
• Record the number of washing 9999
• 60 racks per hour
• Drain outlet 42mm
• WaterMark approved

Specifications

• Net Weight: 104kg
• Dimensions (WxDxH): 710 x 790 x 1430 ± 20 mm
• Door Entry: 400mm
• Basket Size: 500 x 500mm
• Electrical Supply (V/Hz/ph): N?415V AC / 50Hz / 3ph
• Cycle Length(3wash cycles): 60 / 90 / 120 sec

Wash Pump, Tank and Element

• Wash Pump: 3-ph:400 L/min, 0.6 Kw
• Wash Tank Capacity: 27 Litres
• Wash Tank Heater :3.0 Kw
• Wash temperature: 60°C to 65°C

Rinse Pump, Tank and Element

• Rinse Pump: 0.35 Kw
• Rinse Tank Capacity: 11 Litres
  Rinse Tank Heater: 9Kw
• Rinse Temperature: 82°C minimum
• Water Consumption: 2.9 Litres per cycle

Electrical and Water Connections:

• Electrical Input: 415V / 50Hz / 3ph, 15.71Kw
• Water Input: 15 °Cminimum @ 100-400kPa
• Hot Water Inlet: 3/4” B.S.P. fitting
• Drain Outlet:11/2” B.S.P. gravity fed

Certified Product

1 Year Parts and Labour Warranty
