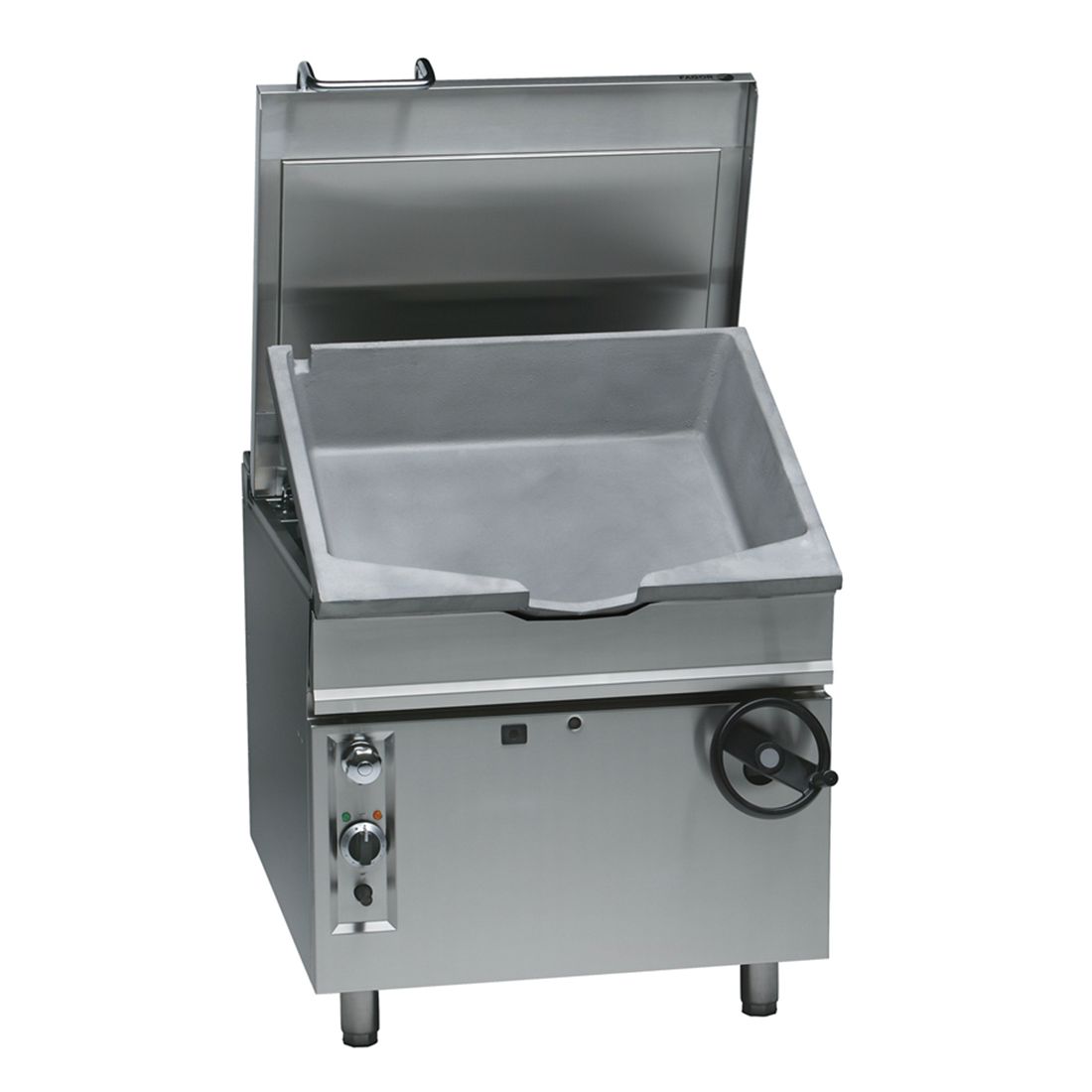

Fagor 900 series NG 80 litre crank tilting bratt pan SBG9-10I

Fagor 900 series NG 80 litre crank tilting bratt pan with SS burner and Temp control SBG9-10I

The Bratt pans in the 900 Series have counterbalanced hinged lids with a lower reinforced recess. The hinge allows the lid to be opened at any angle. The pans have a temperature control thermostat with a temperature range of 50 ºC to 315 ºC, and pilot lights to indicate machine on and machine heating.

• Made of stainless steel
• Counterweighted hinged lid.
• Lid can be used as benchtop when closed.
• Pan capacity: 80 litres (approx.).
• Surface area: 50 dm2
• Stainless steel pan, with heat diffuser bottom 10 mm. thick.
• Stainless steel tubular burner controlled by solenoid valve and
• thermostat temperature control (50 ºC to 315 ºC)
• Crank tilting system.
• Safety system to extinguish the flame if the pan raises.
• Water feed.
• Power: 18.6 kW or 66 mj./h.

Dimensions: 850 x 900 x 850* mm. *Supplied on height adjustable legs; total height adjusts from 850mm to 900mm Electrical supply: 230V-1+N UNIT NOT SUPPLIED WITH POWER CORD AND PLUG. THESE MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN.
